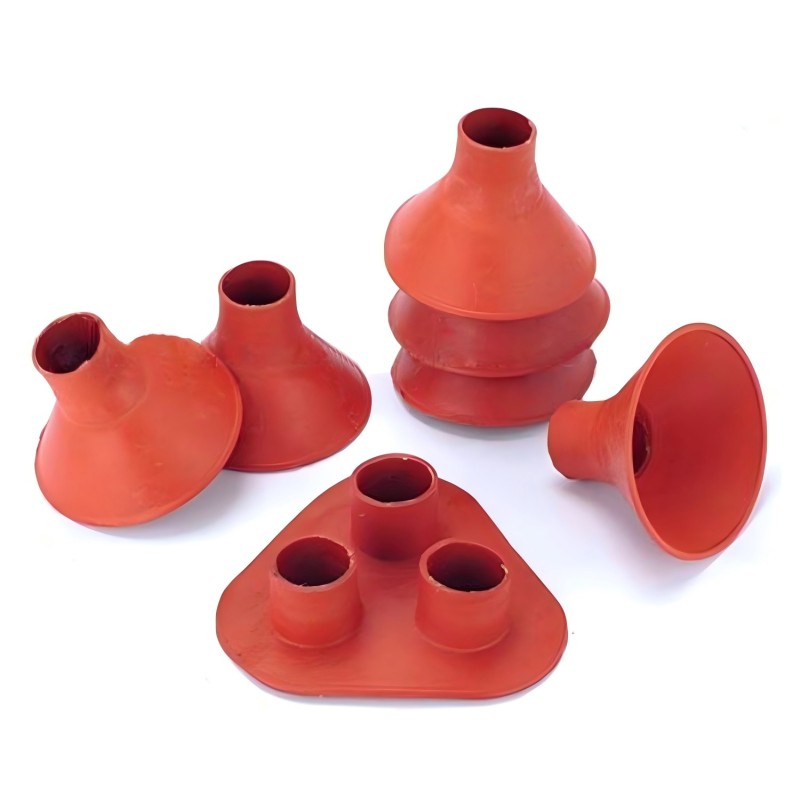

DSQ Heat Shrink Rain Sheds

Product Application:
Heat shrink rain sheds are designed for use on 8.7/15 kV heat shrinkable cable termination kits.
They are used to increase creepage distance and improve the outdoor performance of medium-voltage cable terminations,
especially in coastal, industrial and heavily polluted environments.

Product Features:
Made of cross-linked polyolefin with excellent tracking and erosion resistance
Heat shrink design ensures a tight, secure fit on the insulating tube and easy installation
Significantly increases creepage distance and improves flashover performance under wet and polluted conditions
Good resistance to UV, weathering and environmental aging for long-term outdoor service
Compatible with most heat shrinkable indoor and outdoor terminations

Product origin: HuBei

Information

Product Performance Specifications

Property	Test Standard	Test Data
Tensile Strength	ASTM D 2671	≥ 13 MPa
Elongation at Break	ASTM D 2671	≥ 400%
Volume Resistivity	ASTM D 2303	2 × 10¹⁴ Ω·cm
Water Absorption	ISO 62	< 0.5%
Tensile Strength After Aging	ASTM D 2671 / 120°C, 168 hrs	≥ 10.4 MPa
Elongation at Break After Aging	ASTM D 2671 / 120°C, 168 hrs	≥ 350%
Dielectric Strength	ASTM D 2671	≥ 15 kV/mm
Tracking Resistance	ASTM D 2303	3.75 kV, 1 hr, Pass

Note: The above data are typical test results and shall not be used as product acceptance criteria.

Series Specifications

Model & Size	Applicable Cable Size (mm²)	Skirt Diameter (mm)	Diameter Before Shrinkage (mm)	Diameter After Shrinkage (mm)
DSQ10-35/14	25–120	110	35	14
DSQ10-45/19	150–400	110	45	19
DSQ10-50/19	500–630	110	50	19
SSQ10-35/14	25–120	—	35	14
SSQ10-45/19	150–400	—	45	19
SSQ10-50/19	500–630	—	50	19
DSQ35-60/28	50–120	140	60	28
DSQ35-70/35	150–400	140	70	35
DSQ35-80/35	500–630	140	80	35
DSQ35-100/35	Special Sizes	140	100	35
