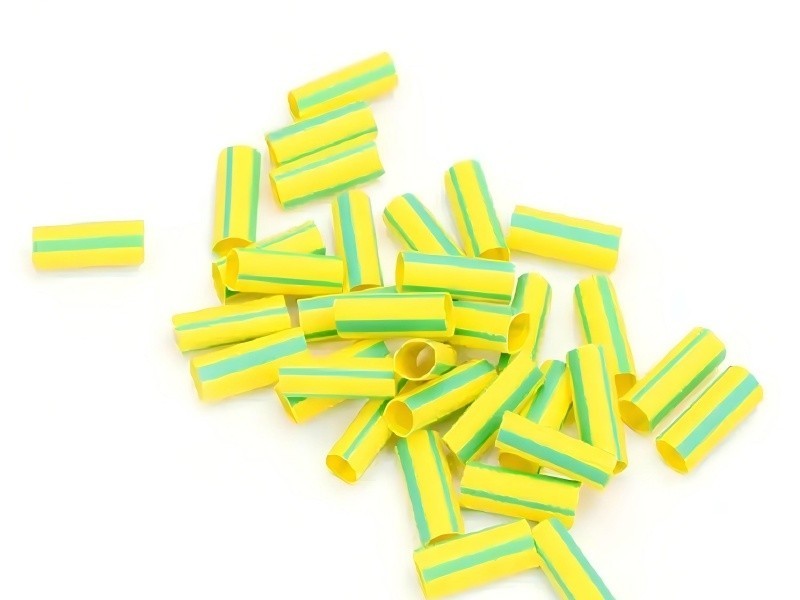

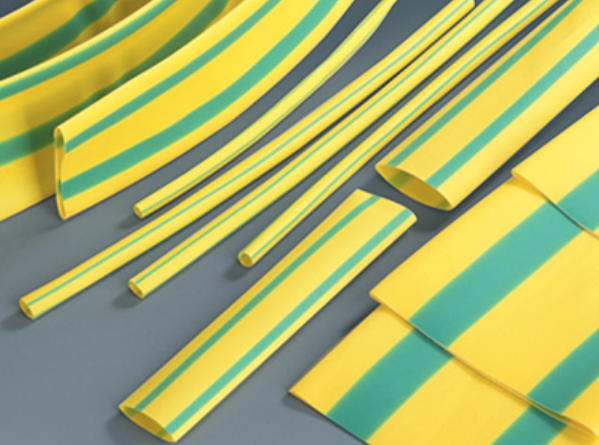

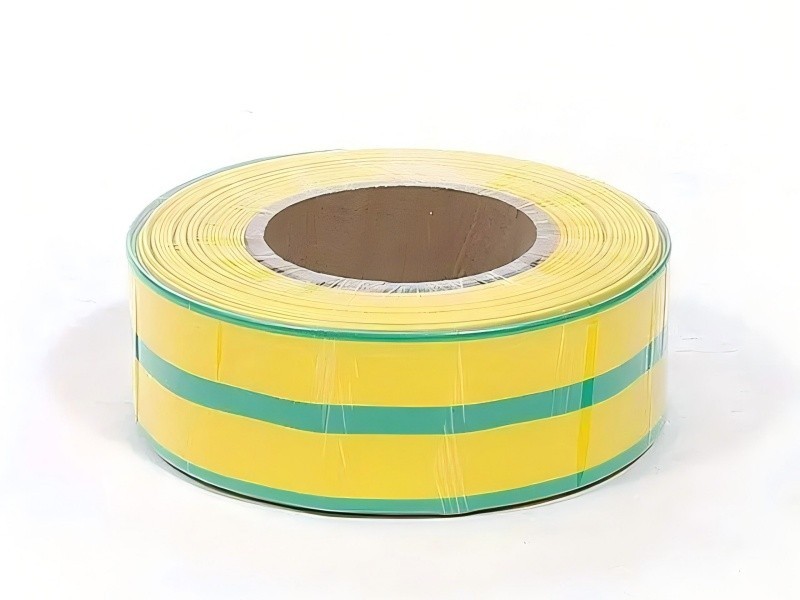

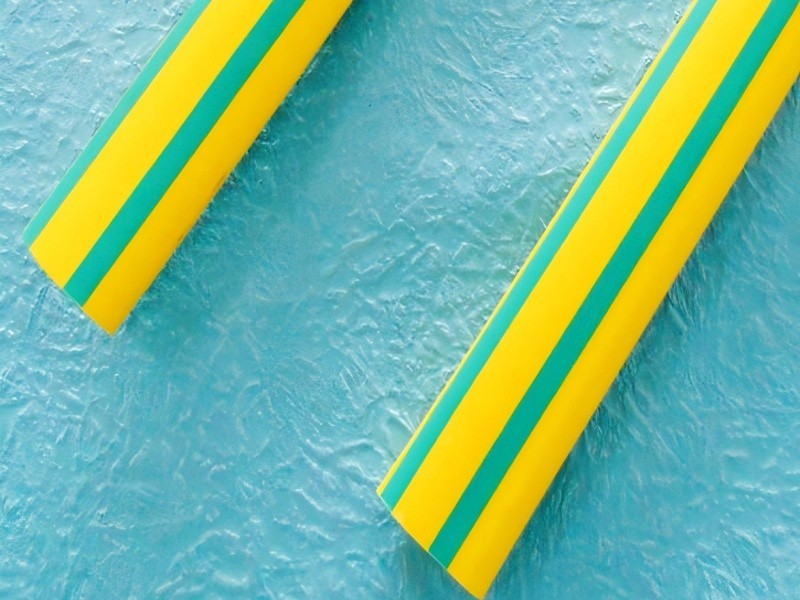

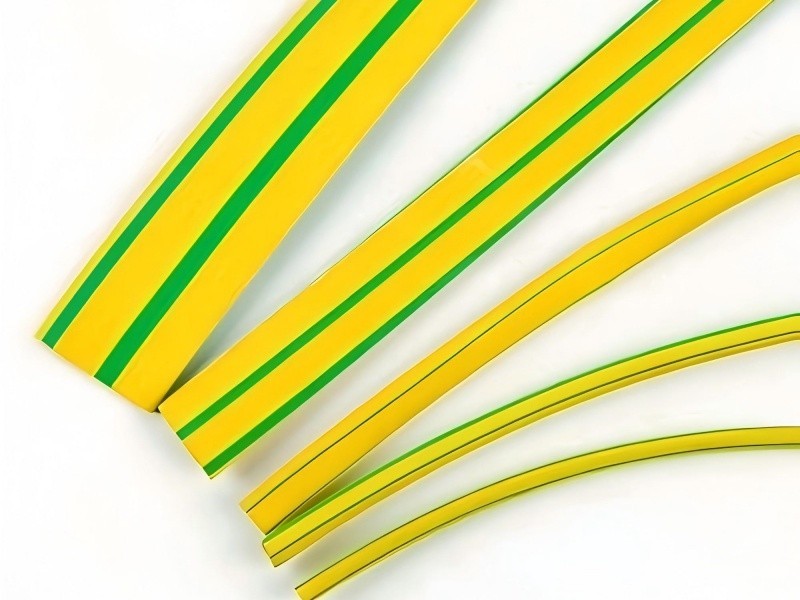

Dual-Color Thin Wall Tubing
The LRS-YG Series is designed for clear identification of grounding conductors and other applications requiring color-coded insulation marking. The tubing offers reliable performance with excellent flexibility, easy installation, and stable shrink characteristics.
Product Features
Shrink Ratio: 2:1
Material Characteristics: Soft, flexible, and easy to install
Operating Temperature Range: –40°C to +105°C
Full Recovery Temperature: 110°C
Standard Color: Yellow-Green
Application: Ideal for grounding wire identification and color separation marking
- HUBEI
- Information
Product Performance Index
| Item | Test Conditions | Typical Test Data |
|---|---|---|
| Tensile Strength | ASTM D 638 | 11 MPa |
| Elongation at Break | ASTM D 638 | 350% |
| Volumetric Resistivity | ASTM D 876 | 2×10¹⁴ Ω·cm |
| Water Absorption | ASTM D 570 | 0.2% |
| Tensile Strength After Aging(158°C, 168 hours) | ASTM D 638 | 10.5 MPa |
| Elongation After Aging(158°C, 168 hours) | ASTM D 638 | 260% |
| Dielectric Strength | ASTM D 150 | 23 kV/mm |
| Thermal Shock Properties(250°C, 4 hours) | ASTM D 2671 | Pass |
| Low Temperature Bending Test(-55°C, 4 hours) | ASTM D 2671 | Pass |
| Wall Thickness Deviation Rate | UL 224 | 15% |
| Longitudinal Shrinkage | UL 224 | -1% |
