YRS Heat Shrinkable Oil Tubing
YRS Heat shrinkable oil tubing for automobile
YRS series non-flame retardant of Heat shrinkable oil tubing for automobile
is made of single layer polyolefin or outer layer polyolefin inner layer composite

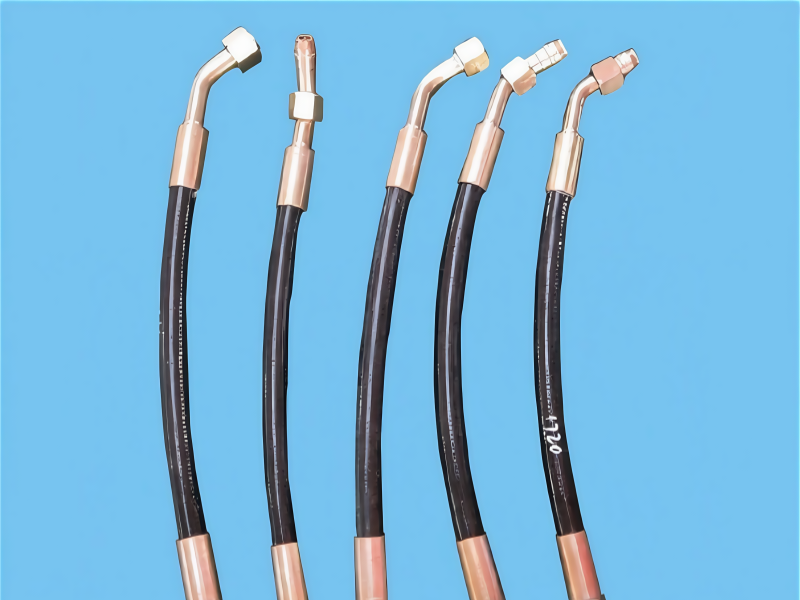

hot melt adhesive,The products are widely used in the outer protection of oil tubes
of various vehicles.To prevent corrosion or abrasion.
- Zhizheng
- HuBei
- Information
YRS Heat shrinkable oil tubing for automobile
Product FeaturesEasy to shrink,After shrinking, the surface is flat and bright, without wrinkling Special customization according to tubing specification,More suitable for the use of tubing Processing by special polyolefin processing technology,Reliable wear resistance Excellent oil resistance,to meet the Environmental requirements of the use of automotive oil tubing Continuous use temperature:-55℃ 105℃Complete Shrinkage Temperature:110℃
Product Performance Index
| Item | Index |
|---|---|
| Appearance | Smooth surface, no defects |
| Material | Crosslinked polyolefin |
| Complete Shrinkage Temperature | 110°C |
| Continuous Use Temperature | -55°C to 105°C |
| Tensile Strength | ≥15 MPa |
| Elongation at Break | ≥400% |
| Longitudinal Shrinkage | ≤3% |
| Heat Shrink Performance | The YRS-6, YRS-8, and YRS-10 heat shrink tubes are respectively fitted on copper tubes of F4.76, F6.35, and F8.00. Then, the copper tubes are wound on F15, F35, and F45 spools. After heating in an oven at 140°C for 10 minutes, there should be no wrinkling or shedding of the heat shrink tubes. |
| Shrinkage Test on PVF Tube | Take five 200 mm heat shrinkable tubes and put them on the PVF tube. Put it into an oven at 140°C for 10 minutes. Measuring the longitudinal shrinkage of the heat shrink tube should be 3%-3%. The fluctuation range of several samples is ±2%. |
| Wall Thickness Deviation Rate | ≤20% |
| Tensile Strength after Aging (120°C 24 hours) | ≥12 MPa |
| Elongation after Aging (120°C 24 hours) | ≥200% |
| Cold Crack Resistance (50°C 24 hours) | No cracking |
| Cold Resistance (-35°C 1 hour) | No cracking |
| HONDA Oil Resistance (25°C 72 hours) | Tensile Strength ≥ 14 MPa, Elongation ≥ 250% |
| HONDA Brake Fluid Resistance (25°C 72 hours) | Tensile Strength ≥ 14 MPa, Elongation ≥ 250% |
| Gasoline Resistance (25°C 72 hours) | Tensile Strength ≥ 10 MPa, Elongation ≥ 250% |

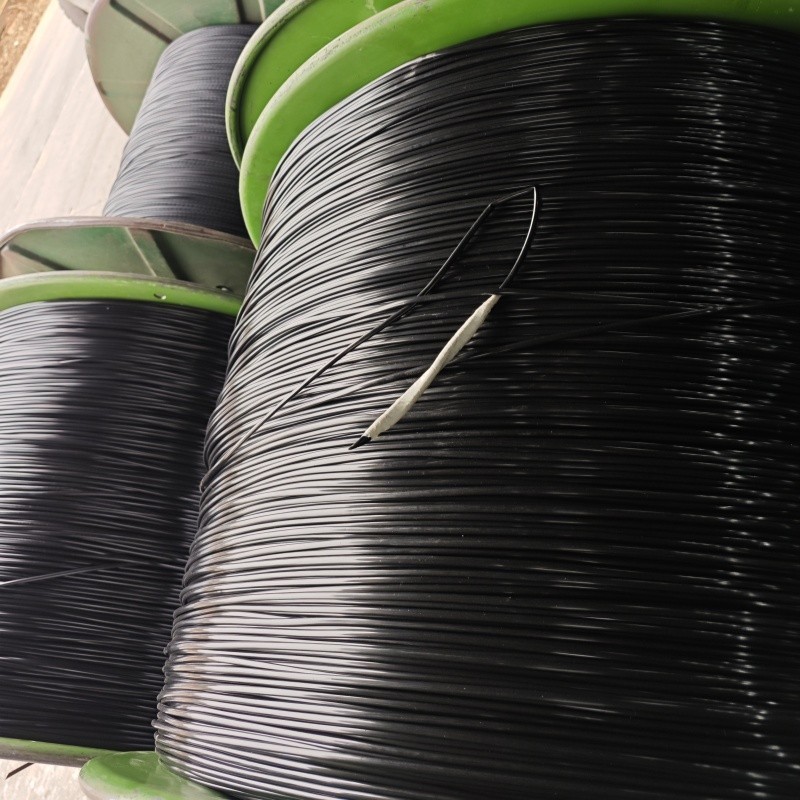

YRS Series Specification Sheet
| Model | Applicable Outer Diameter (mm) | Wall Thickness Before Shrink (mm) | Inner Diameter Before Shrink (mm) | Wall Thickness After Shrink (mm) | Inner Diameter After Shrink (mm) | Packing Length (M/Spool) |
|---|---|---|---|---|---|---|
| YRS-5 | Φ3.50 | 0.70 ± 0.04 | 5.3 ± 0.3 | 1.0 ± 0.05 | 3.0 ± 0.3 | 200 |
| YRS-6 | Φ4.76 | 0.74 ± 0.04 | 7.0 ± 0.3 | 1.0 ± 0.05 | 4.0 ± 0.4 | 100 |
| YRS-8 | Φ6.35 | 0.75 ± 0.05 | 9.0 ± 0.3 | 1.0 ± 0.05 | 5.6 ± 0.4 | 100 |
| YRS-10 | Φ8.00 | 0.80 ± 0.05 | 10.5 ± 0.3 | 1.1 ± 0.05 | 7.0 ± 0.4 | 100 |
| YRS-12 | Φ10.00 | 0.82 ± 0.05 | 12.5 ± 0.3 | 1.2 ± 0.05 | 8.0 ± 0.40 | 50 |
Standard Color: Black
Notes:
Packing length can be cut according to customer's requirement.
All dimensions in millimeters (mm).
