RSY-10 10kV Heat Shrink Cable Termination Kit (NRSY Indoor & WRSY Outdoor)
1. Engineered for 6/10kV and 8.7/15kV medium-voltage XLPE networks, our 10kV heat shrink cable termination kit ensures superior electrical stress control. Achieving an exceptional ≤2pC partial discharge rate, it guarantees long-term grid stability for both indoor switchgear and harsh outdoor substations.
2. Backed by our 40,000㎡ highly automated manufacturing base in China, we produce premium medium voltage cable terminations using advanced radiation-crosslinked polyolefin. With a monthly supply capacity of 100,000 sets, we maintain a robust inventory to support rapid global deployment and large-scale bulk orders.
3.Trusted by power utilities across 30+ countries, our heat shrink terminal accessories pass rigorous 20-load cycle tests at 90°C with zero breakdowns. Complying with GB/T 12706, UL, and SGS standards, we provide flexible OEM customization, private labeling, and competitive factory-direct pricing.
- Zhizheng
- Hubei, China
- 7-15 Days for standard sizes; 15-25 Days for OEM/Custom orders
- 100,000 Sets / Month
- Information
10kV Heat Shrink Cable Termination Kit — Reliable Manufacturer & Supplier
Medium-voltage power failures are often traced back to poor cable terminations. The Zhizheng RSY-10 Series (6/10kV & 8.7/15kV) heat shrink cable termination kits are engineered to eliminate these risks. Manufactured in our 40,000㎡ ISO-certified facility in Hubei, China, our kits deliver exceptional stress control, weather resistance, and insulation performance. Whether you need the NRSY series for indoor switchgear or the WRSY series with extended rain skirts for outdoor substations, buying factory-direct ensures you get certified quality at competitive wholesale prices.
Product Overview
The RSY-10 Series includes premium heat-shrinkable terminal accessories designed specifically for 10kV (up to 15kV) medium-voltage Cross-Linked Polyethylene (XLPE) power cables. Complying strictly with GB/T 12706, JB/T 8144, and DL/T 413 standards, these kits utilize radiation-crosslinked polymeric materials that offer permanent elastic memory. They provide a seamless, moisture-proof seal that guarantees long-term stable operation in extreme environments ranging from -40°C to +105°C.
Key Features & Business Benefits
Exceptional Insulation Safety: Achieves a partial discharge of ≤2pC (far exceeding the standard ≤20pC requirement), significantly reducing the risk of insulation breakdown and extending cable life.
Tailored for Any Environment:
Indoor (NRSY-10): Compact design perfect for confined spaces like switchgear and indoor transformers.

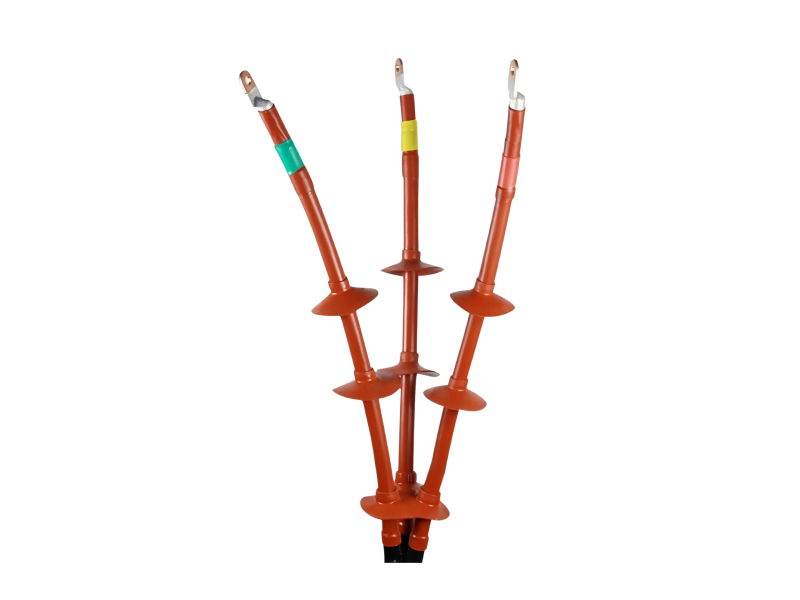

Outdoor (WRSY-10): Equipped with specialized anti-tracking rain sheds (skirts) to increase creepage distance and resist heavy pollution and UV rays.
Fast & Foolproof Installation: Designed for rapid, uniform heat shrinking. Ensures a secure fit over XLPE cables without the need for specialized heavy tooling.
Verified Durability: Successfully passed 20 rigorous load cycles at 90°C with zero breakdowns, ensuring grid reliability under peak power demands.
Cost-Effective Bulk Sourcing: As a direct China manufacturer, we provide flexible OEM customization, private labeling, and scalable volume production for global EPC contractors and distributors.
Performance Test Data (Verified Quality)
All test data are officially verified by the Electrical Equipment Quality Inspection and Testing Center of the Power Industry.
| Test Item | Standard Requirement | Zhizheng Test Result | Appraise |
|---|---|---|---|
| 1 Min Power Frequency Voltage | 45 kV / 1 min (No flashover/breakdown) | 45 kV / 1 min, No flashover | ✔ Pass |
| 15 Min DC Voltage (Negative) | -52 kV / 15 min (No flashover/breakdown) | -52 kV / 15 min, No flashover | ✔ Pass |
| Impulse Voltage Test | 105 kV (10 times, +/- polarity) | 105 kV (10 times), No breakdown | ✔ Pass |
| Partial Discharge (Before Load) | 13 kV power supply, ≤ 20 pC | ≤ 2 pC (Excellent) | ✔ Pass |
| Load Cycle Test | 20 cycles at 90°C, no breakdown | Passed 20 cycles seamlessly | ✔ Pass |
| 4h Power Frequency Voltage | 35 kV / 4 hours (No breakdown) | 35 kV / 4 hours, No breakdown | ✔ Pass |
Model Selection Guide (NRSY & WRSY Series)
All kits are applicable for 10kV XLPE cables. Custom sizes and breakout configurations are available upon request for OEM and bulk orders.
| Application Type | Series Model | Core Type | Applicable Cable Cross-Section (mm²) |
|---|---|---|---|
| Indoor | NRSY-10 / 1-Core | Single-Core | 10-16, 25-50, 70-120, 150-240, 300-400, 500-630 |
| Indoor | NRSY-10 / 3-Core | Three-Core | 10-16, 25-50, 70-120, 150-240, 300-400 |
| Outdoor | WRSY-10 / 1-Core | Single-Core | 10-16, 25-50, 70-120, 150-240, 300-400, 500-630 |
| Outdoor | WRSY-10 / 3-Core | Three-Core | 10-16, 25-50, 70-120, 150-240, 300-400 |
FAQ
Q1: What is the main difference between the NRSY-10 (Indoor) and WRSY-10 (Outdoor) kits?
A: The WRSY-10 outdoor terminations include additional heat-shrinkable rain sheds (skirts). These sheds significantly increase the creepage distance, preventing electrical tracking caused by rain, salt fog, and industrial pollution.
Q2: What is included in a standard 10kV heat shrink termination kit?
A: A complete kit typically includes stress control tubing, anti-tracking insulation tubing, breakout boots (for 3-core cables), sealing mastics, rain sheds (for outdoor versions), and a detailed installation manual. Copper or aluminum lugs can be provided upon request.
Q3: Can these kits be used on older PVC cables, or only XLPE?
A: The RSY-10 series is specifically optimized for Cross-Linked Polyethylene (XLPE) medium-voltage cables. If you have specific requirements for other insulation types, please contact our engineering team for a customized solution.
Q4: Do you support factory-direct wholesale and OEM branding?
A: Absolutely. As a direct manufacturer with over 20 years of experience in Hubei, China, we offer flexible bulk wholesale pricing, custom kitting, and private labeling (OEM) for global distributors and EPC contractors.
Upgrade Your Medium Voltage Network with Zhizheng
Ensure the safety and longevity of your 10kV power distribution systems with our industry-verified heat shrink terminations. Partner with a trusted Chinese manufacturer to secure your supply chain.
Contact our expert team today to get the latest factory price list, request technical data sheets, or discuss OEM customization!
