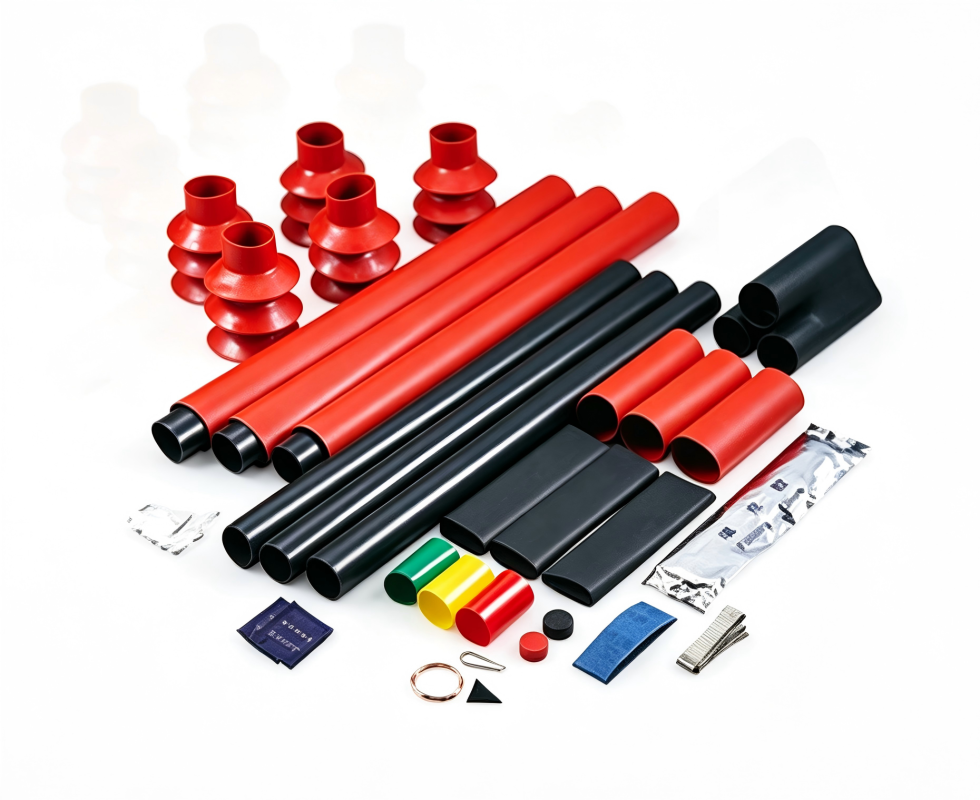

RSY-35 35kV High Voltage Heat Shrink Cable Termination Kit
Designed for 21/35kV and 26/35kV transmission networks, our 35kV heat shrink cable termination kit provides ultimate stress control for XLPE cables. It is heavily utilized by EPC contractors in wind farms, solar substations, and heavy industrial power grids globally.
Featuring advanced radiation-crosslinked technology, this high voltage cable termination effortlessly withstands massive 250kV impulse voltages. Our lab testing proves an outstanding partial discharge of just 4.5pC at 39kV, ensuring unmatched dielectric strength and safety.
As an ISO-certified Chinese manufacturer, we maintain a robust inventory of 36kV XLPE cable accessories to support large-scale infrastructure projects. We offer factory-direct wholesale pricing, fast dispatch, and customized breakout configurations for bulk orders.
- Zhizheng
- Hubei, China
- 10-20 Days for standard sizes; 20-30 Days for custom OEM orders
- 50,000 Sets / Month
- Information
35kV Heat Shrink Cable Termination Kit — High-Voltage Solutions Manufacturer
High-voltage power transmission requires uncompromising electrical stress management. The Zhizheng RSY-35 Series (21/35kV & 26/35kV) heat shrink terminations are engineered specifically for heavy-duty infrastructure. Produced in our 40,000㎡ facility in China, these kits provide superior mechanical protection and electrical insulation for critical networks, including renewable energy substations and heavy industrial plants. By partnering directly with the manufacturer, global EPC contractors gain access to premium, type-tested 35kV accessories at highly competitive wholesale rates.
Product Overview
The RSY-35 Series serves as the ultimate connection solution for 35kV Cross-Linked Polyethylene (XLPE) power cables. Built to comply with GB/T 12706.4, JB/T 8144, and DL/T 413 standards, the kits feature high-grade, lightweight polymeric materials. Whether deploying the NRSY-35 for indoor switchgear or the WRSY-35 for outdoor exposed environments, the system ensures long-term operational stability in extreme temperatures (-40℃ to +105℃).
Key Features & Engineering Advantages
Heavy-Duty Dielectric Strength: Tested to withstand a 250kV impulse voltage (10 times, positive/negative), ensuring grid resilience against lightning strikes and power surges.
Ultra-Low Partial Discharge: While industry standards require ≤10 pC at 39kV, our combined sample testing yielded a remarkable 4.5 to 4.8 pC, indicating a virtually flawless insulation structure.
Advanced Stress Control: High-voltage cables generate intense electrical fields at the termination cut-back. Our specially formulated stress-control tubing disperses this energy safely, preventing premature cable breakdown.
Weather & Tracking Resistance: The outdoor WRSY-35 models are equipped with heavily engineered anti-tracking rain skirts, shedding water and combating heavy industrial pollution and salt fog.
Optimized for B2B Supply Chains: We offer streamlined manufacturing for bulk purchasing, private OEM labeling, and custom dimensional adjustments for specialized high-voltage projects.
Certified Performance Test Data
*All data independently verified by the Electrical Equipment Quality Inspection and Testing Center of the Power Industry.
| Test Item | Standard Requirement | Zhizheng Lab Result | Evaluation |
|---|---|---|---|
| 1 min Power Frequency Voltage | 105 kV / 1 min (No flashover) | 105 kV / 1 min, No flashover observed | Pass |
| Partial Discharge (Initial) | At 39 kV ≤ 10 pC | 4.5 pC, 4.8 pC, 4.8 pC (Per Phase) | Pass |
| Impulse Voltage Test | 250 kV, 10 impulses (+/- polarity) | 250 kV, No breakdown in any phase | Pass |
| Load Cycle Test | 90°C–95°C per cycle, 3 cycles | Completed 3 load cycles flawlessly | Pass |
| 15 min DC Voltage (Negative) | -156 kV / 15 min (No breakdown) | -156 kV / 15 min, No flashover | Pass |
| 4 h Power Frequency Voltage | 104 kV / 4 h (No breakdown) | 104 kV / 4 h, Zero deformation/cracks | Pass |
35kV Sizing & Selection Guide
Applicable for 35kV XLPE cables. Lugs and custom breakout configurations are available for factory-direct orders.
| Environment | Series Name | Cable Core Type | Cross-Section Range (mm²) |
|---|---|---|---|
| Indoor (Switchgear/Substation) | NRSY-35 / 1-Core | Single-Core | 50-120, 150-240, 300-400, 500-630 |
| Indoor (Switchgear/Substation) | NRSY-35 / 3-Core | Three-Core | 50-120, 150-240, 300-400 |
| Outdoor (Pole/Exposed) | WRSY-35 / 1-Core | Single-Core | 50-120, 150-240, 300-400, 500-630 |
| Outdoor (Pole/Exposed) | WRSY-35 / 3-Core | Three-Core | 50-120, 150-240, 300-400 |
Frequently Asked Questions
Q1: Why is stress control more critical for the 35kV kits compared to 10kV?
A: At 35kV, the electrical field concentration at the end of the cable shield is significantly higher. Our RSY-35 kits include highly specialized stress-relief tubing with precise impedance characteristics to manage and disperse this stress, preventing high-voltage tracking and failure.
Q2: Are these 35kV terminations suitable for renewable energy projects?
A: Yes. The WRSY-35 outdoor terminations are widely specified by EPC contractors for wind turbine step-up transformers and solar farm grid-tie connections due to their extreme UV resistance and 250kV impulse durability.
Q3: What is your manufacturing lead time for large 35kV project orders?
A: For standard sizes, our automated facilities in Hubei can dispatch orders within 10 to 20 days. For custom OEM specifications or massive infrastructure quantities, lead times are typically 20 to 30 days. We maintain safety stock to support urgent project timelines.
Q4: Can we order these kits with our own company branding (OEM)?
A: Absolutely. As a direct factory supplier, we provide full OEM packaging and private labeling services for electrical distributors and brand owners worldwide.
Secure Your High-Voltage Infrastructure with Zhizheng
Do not compromise on 35kV network safety. Partner with an experienced Chinese manufacturer to receive type-tested, ultra-low partial discharge cable accessories at wholesale prices.
Reach out to our engineering sales team today to request a factory quote, technical drawings, or OEM samples!
