In the world of electrical insulation and cable protection, professionals are often faced with a choice between two dominant technologies. While many are familiar with traditional heat-activated methods, fewer understand the distinct advantages of the cold application alternative. At Zhizheng, with over 20 years of experience manufacturing premier cold shrink components, we are here to demystify this technology.

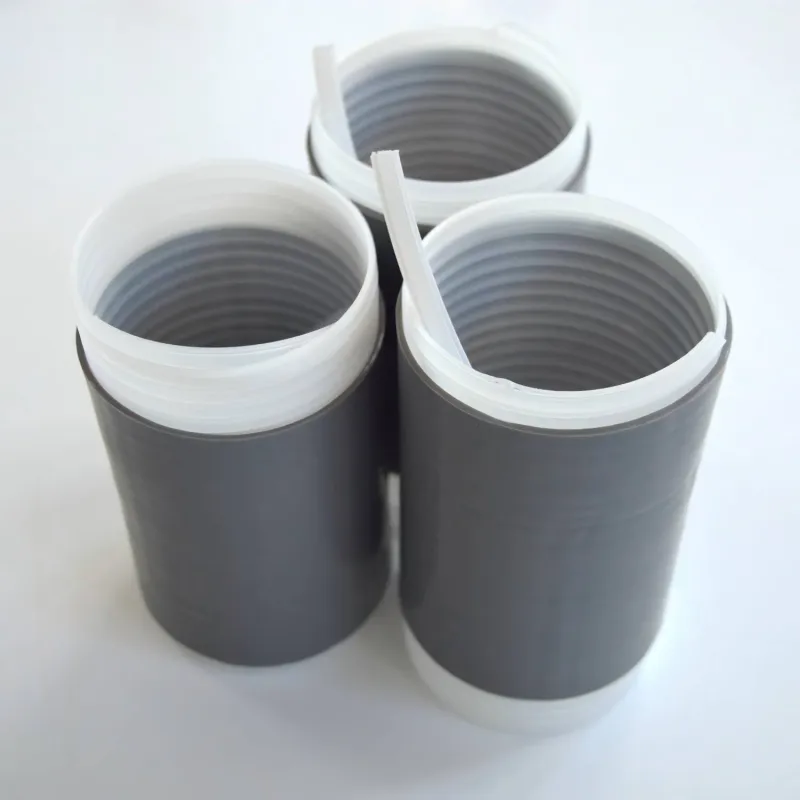

So, what is shrink tubing in the context of "cold" application? Fundamentally, cold shrink tubing is an open-ended, tubular rubber sleeve. Unlike its heat-shrink counterpart, it is factory-expanded and assembled onto a removable plastic core. This core holds the tube in a stretched state, like a coiled spring waiting to be released.
The magic happens during installation. The pre-stretched tube is positioned over the cable or connection. The installer then unwinds the inner plastic core by pulling a rip cord. As the core is removed, the rubber sleeve collapses—or shrinks—down tightly onto the cable. This process requires absolutely no heat, open flames, or special tools. It relies entirely on the elastic memory of the rubber material, typically EPDM or Silicone.
This "active memory" creates a permanent radial pressure. Think of it like a rubber band that is constantly trying to contract. This dynamic seal ensures that even as the cable expands and contracts due to thermal cycling (we know that does metal shrink when cold? Yes, and it expands when hot), the cold shrinkable tube moves with it, maintaining a watertight seal that never loosens over time.
For those familiar with what is heat shrink tubing, you know it becomes rigid after cooling. Cold shrink, however, remains flexible and "alive," making it superior for environments with vibration or significant temperature shifts.
Where Would I Use Cold Shrink Tubing?
While heat shrink components are excellent for general-purpose insulation, cold shrink tubing shines in environments where safety, speed, and reliability are non-negotiable.
1. Hazardous Environments:
Imagine working on an oil rig, a gas pipeline, or a chemical processing plant. In these zones, the presence of flammable gases means that using a heat gun or an open flame torch is strictly prohibited or requires expensive "hot work" permits. Cold shrink tubing eliminates this risk entirely. It is a "cold" install, making it the safest option for explosive atmospheres.
2. Confined Spaces:
Cable trenches, manholes, and crowded switchgear cabinets often provide very little room to maneuver. Trying to evenly heat a shrink tube in a cramped space is difficult and can lead to uneven shrinkage or damage to surrounding components. A cold shrink tube requires only enough space for the installer's hand to pull the core cord, making it ideal for tight quarters.
3. Outdoor and Submersible Applications:
Because of the constant radial pressure exerted by the EPDM or silicone rubber, cold shrink creates a formidable environmental seal. It is frequently used for sealing coaxial connectors on cellular towers (weatherproofing) or splicing submersible pump cables where moisture ingress would be catastrophic.
4. High-Voltage Cable Accessories:
In medium and high-voltage applications (up to 69kV), the dielectric consistency of the insulation is critical. The factory-controlled expansion of cold shrink ensures a uniform wall thickness upon installation, reducing the risk of installer error affecting the electrical properties.
6 Key Benefits of Cold Shrink Tubing
As a leading shrink tube alternative, cold shrink offers distinct operational advantages that justify its use in critical infrastructure.
1. Easy to Install
Simplicity is the ultimate sophistication. Installation involves three steps: slide, position, and pull. There is no need to calculate heating times or worry about cooling periods. It is significantly faster than heat shrink, especially on larger diameter cables.
2. Reduce Installer Errors
Heat shrinking is an art; it requires skill to apply heat evenly without scorching the tube or trapping air bubbles. Cold shrink removes the variable of "technique." The pre-expanded tube shrinks uniformly by itself once the core is removed, ensuring a perfect installation every time, regardless of the installer's skill level.
3. Large Size Range
One cold shrinkable tube can cover a wide range of cable diameters. This versatility reduces the number of SKUs a warehouse needs to stock. A single unit might comfortably seal a cable range that would require two or three different sizes of traditional tubing.
4. Helps Improve Electrical Properties
Materials like silicone used in our premium cold shrink products offer excellent resistance to tracking and arcing. Furthermore, because the installation exerts constant pressure without rigid adhesives, it minimizes voids at the interface between the tube and the cable insulation, reducing the risk of partial discharge.
5. Excellent Environmental Sealing Properties
This is perhaps its greatest strength. The "living seal" breathes with the cable. Whether the cable jacket expands in the summer heat or contracts in the winter freeze (remember, does metal shrink when cold? Yes, it does), the cold shrink sleeve adapts dynamically. This prevents the formation of moisture paths that can occur with rigid heat shrink seals that might delaminate over time.
6. No Special Tools Needed for Installation
Forget about carrying propane tanks, generators, or extension cords for heat guns. The only tool you might need is a pair of wire cutters to trim the excess plastic core strip after installation. This makes it incredibly convenient for field technicians working in remote locations or atop utility poles.
Conclusion
While heat shrink will always have its place in the workshop for basic wire harnessing, cold shrink tubing is the professional's choice for critical, hazardous, and outdoor applications. It offers a level of safety and reliability that thermal methods simply cannot match in extreme conditions.
At Zhizheng, we pride ourselves on delivering high-quality cold shrink components that meet rigorous international standards. From simple connector seals to complex high-voltage terminations, our solutions are designed to withstand the harshest elements on Earth.
When selecting your product, ensure the cable's outside diameter falls comfortably within the recommended range of the tube to guarantee optimal pressure. If you are unsure which solution fits your project best—whether you need the rigidity of heat shrink or the dynamic sealing of cold shrink—contact our expert sales team today. We are here to help you build safer, longer-lasting connections.
