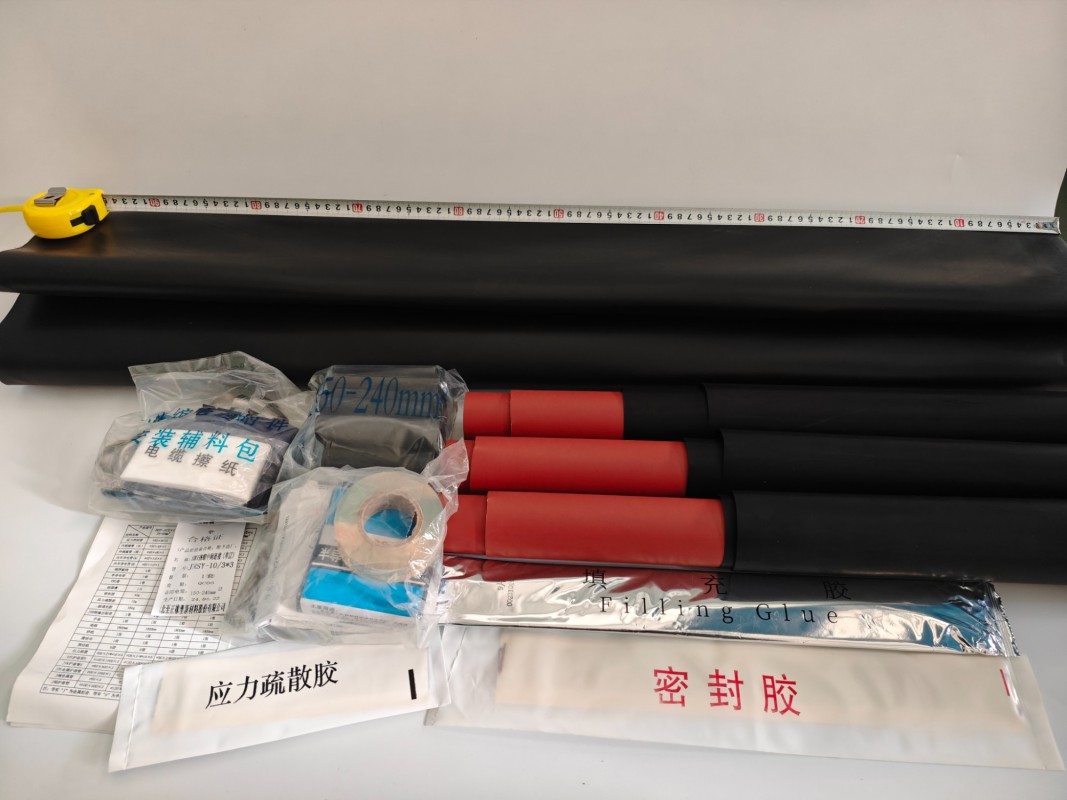

JRSY-10 10 kV Heat Shrinkable Cable Joint Kit
JRSY-10 10 kV Heat Shrinkable Cable Joint for XLPE Power Cables
Product Application
JRSY-10 Series is designed for straight-through intermediate joints of 6/10 kV and 8.7/15 kV XLPE insulated power cables. It provides reliable electrical insulation, sealing and mechanical protection for distribution networks, industrial power systems and utility projects. The joints are suitable for both indoor and outdoor installations, and can also be used for the repair of damaged cable outer sheaths.
Product Features
• Heat shrinkable design ensures a tight fit and excellent interface between insulation layers
• Provides high-quality electrical insulation and robust mechanical protection for cable joints
• Optional adhesive-lined components offer enhanced moisture sealing and corrosion protection
• Good resistance to tracking, weathering, UV and common industrial chemicals
• Compatible with most 6/10 kV and 8.7/15 kV XLPE power cables
• Easy and safe installation with standard heating tools, suitable for on-site construction work
- HuBei
- Information
Product Performance Index
| Test Item | Standard Requirement | Test Result | Evaluation |
|---|---|---|---|
| 1 min Power Frequency Voltage Withstand Test | 45 kV, 1 min, no flashover, no breakdown | 45 kV, 1 min, combined sample showed no flashover or breakdown | Pass |
| Partial Discharge Test (Initial) | Partial discharge at 13 kV ≤ 20 pC | Partial discharge of each phase in the combined sample ≤ 2 pC at 13 kV | Pass |
| Load Cycle Test | Conductor heated to 90°C–95°C per cycle (5 h heating + 3 h cooling), total of 3 cycles | Completed 3 load cycles as per standard | Pass |
| Partial Discharge Test (After Load Cycle) | Partial discharge at 13 kV ≤ 20 pC | Partial discharge of each phase in the combined sample ≤ 2 pC at 13 kV | Pass |
| Impulse Voltage Test | 105 kV, 10 impulses each for positive and negative polarity, no flashover, no breakdown | 105 kV, positive and negative polarity 10 times each, no flashover or breakdown in any phase of combined sample | Pass |
| 15 min DC Voltage Test (Negative Polarity) | -52 kV, 15 min, no flashover, no breakdown | -52 kV, 15 min, no flashover or breakdown in any phase of combined sample | Pass |
| 4 h Power Frequency Voltage Withstand Test | 35 kV, 4 h, no flashover, no breakdown | 35 kV, 4 h, no flashover or breakdown in any phase of combined sample | Pass |
| Appearance Test | No cracks, no deformation | No cracks or deformation observed | Pass |
Note: The above test data were conducted by the Electrical Equipment Quality Inspection and Testing Center of the Power Industry.
JRSY-10 Series Specification Sheet
| Model / Specification | Description | Applicable Cable Cross-Section (mm²) |
|---|---|---|
| JRSY-10/1×1 | 10 kV Heat-Shrinkable Single-Core Cross-Linked Cable Joint | 25–50 |
| JRSY-10/1×2 | 10 kV Heat-Shrinkable Single-Core Cross-Linked Cable Joint | 70–120 |
| JRSY-10/1×3 | 10 kV Heat-Shrinkable Single-Core Cross-Linked Cable Joint | 150–240 |
| JRSY-10/1×4 | 10 kV Heat-Shrinkable Single-Core Cross-Linked Cable Joint | 300–400 |
| JRSY-10/1×5 | 10 kV Heat-Shrinkable Single-Core Cross-Linked Cable Joint | 500–630 |
| JRSY-10/3×1 | 10 kV Heat-Shrinkable Three-Core Cross-Linked Cable Joint | 25–50 |
| JRSY-10/3×2 | 10 kV Heat-Shrinkable Three-Core Cross-Linked Cable Joint | 70–120 |
| JRSY-10/3×3 | 10 kV Heat-Shrinkable Three-Core Cross-Linked Cable Joint | 150–240 |
| JRSY-10/3×4 | 10 kV Heat-Shrinkable Three-Core Cross-Linked Cable Joint | 300–400 |
