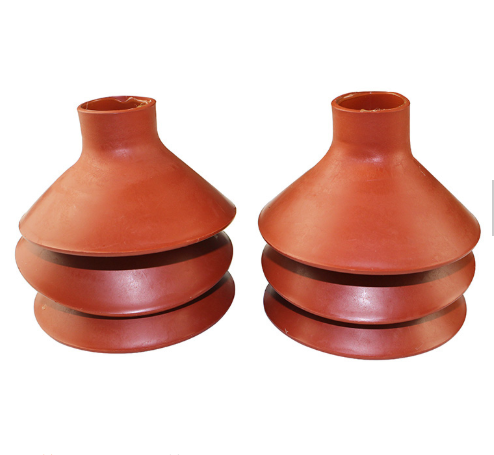

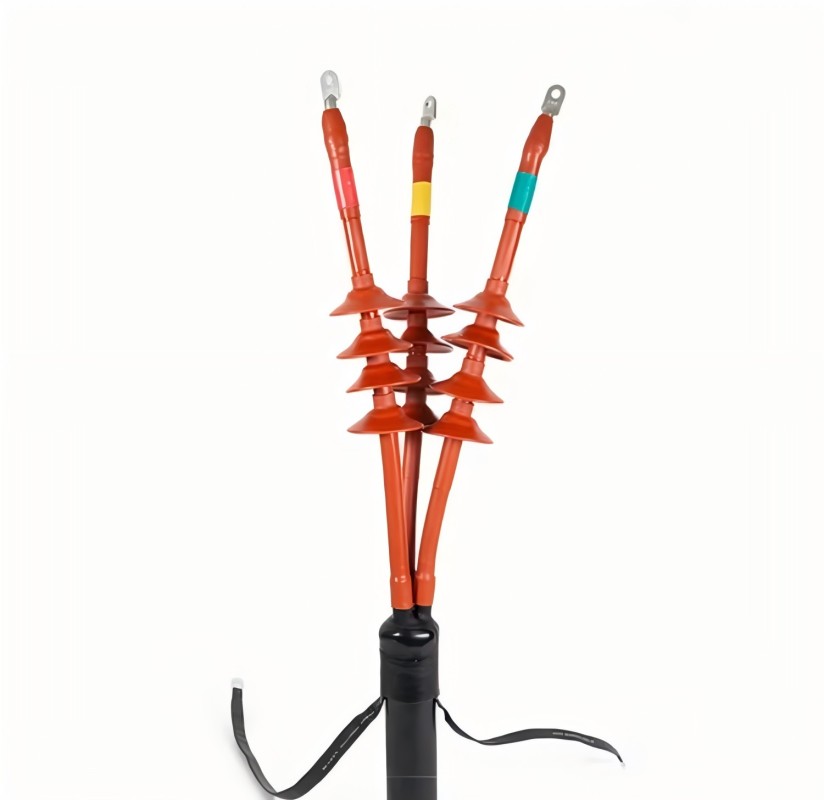

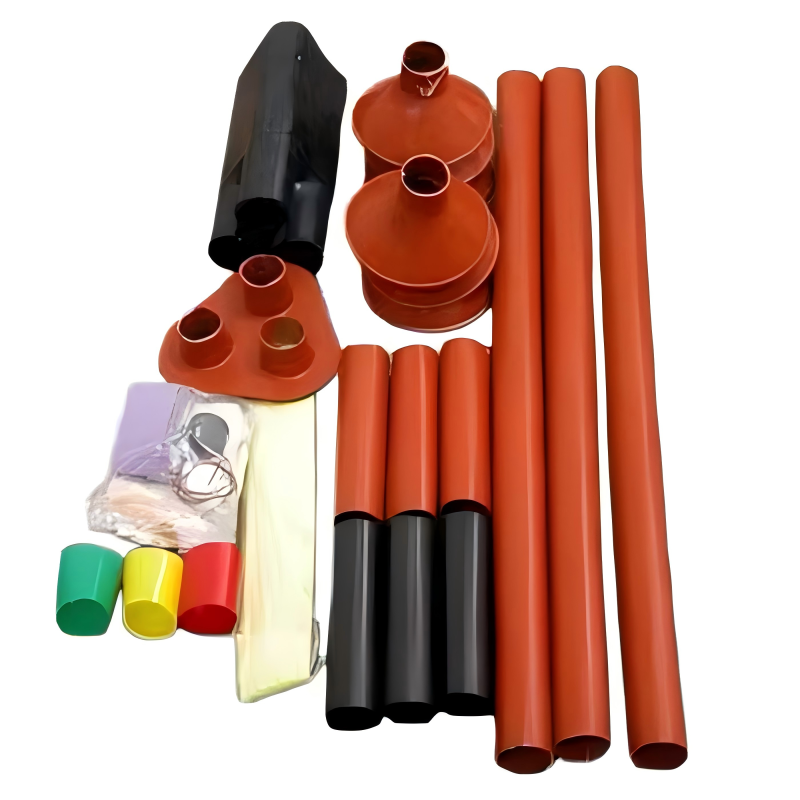

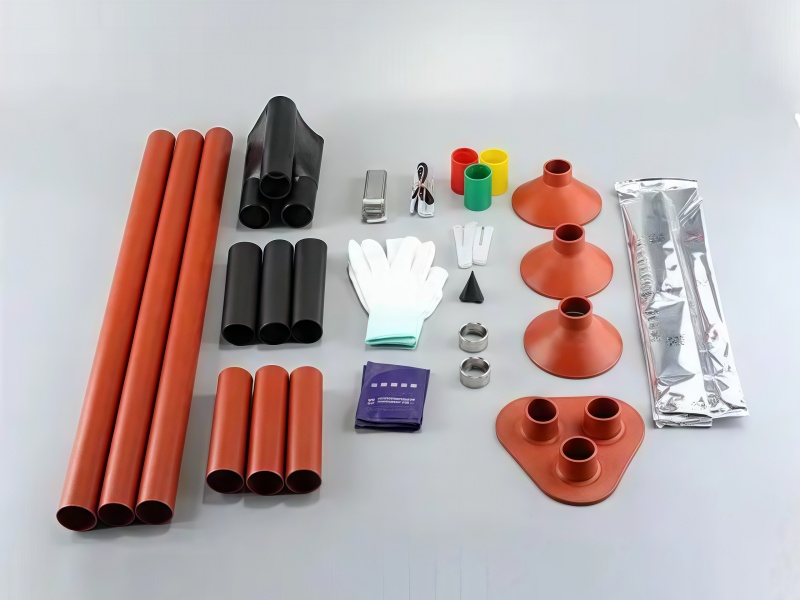

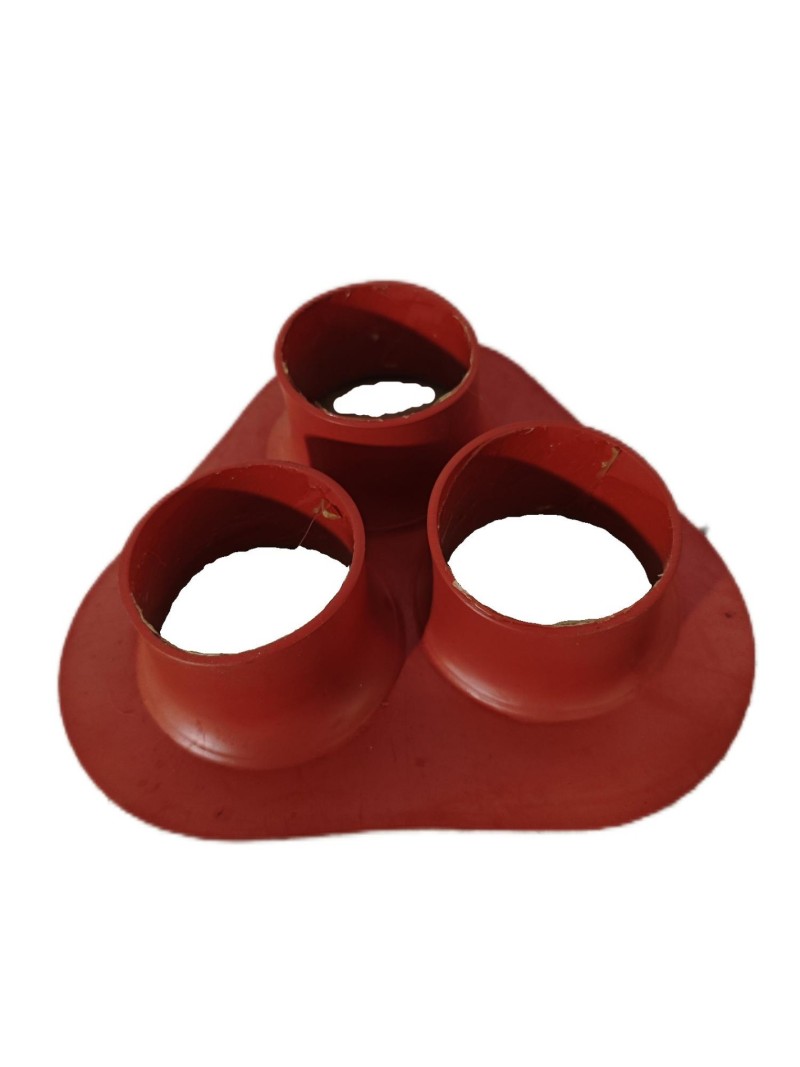

RSY-10 10 kV Heat Shrinkable Cable Termination Kit
Product Application:
The RSY-10 Series is designed for use in 6/10 kV and 8.7/15 kV heat shrinkable cable termination kits, providing reliable insulation and protection for medium-voltage power cables.
Product Features:
Easy installation and safe operation
Stable performance and reliable operation
Complies with GB/T 12706, JB/T 8144, and DL/T 413 standards
Designed for long-term operation under -40°C to +105°C
- HuBei
- Information
Product Performance Index
| Test Item | Standard Requirement | Test Result | Appraise |
|---|---|---|---|
1Min Power Frequency Voltage Test | 45 kV / 1 min (No flashover or breakdown) | 45 kV / 1 min, no flashover, no breakdown | Pass |
| 15 Min DC Voltage Test (Negative Polarity) | -52 kV / 15 min (No flashover or breakdown) | -52 kV / 15 min, no flashover, no breakdown | Pass |
| Impulse Voltage Test | 105 kV (10 times, positive and negative polarity, no flashover or breakdown) | 105 kV (10 times, positive & negative polarity), no flashover, no breakdown | Pass |
| Partial Discharge Test (Before Load Cycle) | 13 kV power supply, ≤20 pC | 13 kV power supply, ≤2 pC | Pass |
| Load Cycle Test | 20 load cycles at 90 °C, no breakdown after cooling | 20 load cycles at 90 °C, no breakdown after cooling | Pass |
| Partial Discharge Test (After Load Cycle) | 13 kV power supply, ≤20 pC | 13 kV power supply, ≤2 pC | Pass |
| 4h Power Frequency Voltage Test | 35 kV / 4 hours (No flashover or breakdown) | 35 kV / 4hours, no flashover, no break down | Pass |
All test data are verified by the Electrical Equipment Quality Inspection and Testing Center of the Power Industry.
NRSY-10 Series – 10kV Heat-Shrinkable Indoor Termination Kits for XLPE Cables
| Model | Description | Applicable Cable Cross-Section (mm²) |
|---|---|---|
| NRSY-10/1×0 | 10kV Heat-Shrinkable Single-Core XLPE Cable Indoor Termination Kit | 10–16 |
| NRSY-10/1×1 | 10kV Heat-Shrinkable Single-Core XLPE Cable Indoor Termination Kit | 25–50 |
| NRSY-10/1×2 | 10kV Heat-Shrinkable Single-Core XLPE Cable Indoor Termination Kit | 70–120 |
| NRSY-10/1×3 | 10kV Heat-Shrinkable Single-Core XLPE Cable Indoor Termination Kit | 150–240 |
| NRSY-10/1×4 | 10kV Heat-Shrinkable Single-Core XLPE Cable Indoor Termination Kit | 300–400 |
| NRSY-10/1×5 | 10kV Heat-Shrinkable Single-Core XLPE Cable Indoor Termination Kit | 500–630 |
| NRSY-10/3×0 | 10kV Heat-Shrinkable Three-Core XLPE Cable Indoor Termination Kit | 10–16 |
| NRSY-10/3×1 | 10kV Heat-Shrinkable Three-Core XLPE Cable Indoor Termination Kit | 25–50 |
| NRSY-10/3×2 | 10kV Heat-Shrinkable Three-Core XLPE Cable Indoor Termination Kit | 70–120 |
| NRSY-10/3×3 | 10kV Heat-Shrinkable Three-Core XLPE Cable Indoor Termination Kit | 150–240 |
| NRSY-10/3×4 | 10kV Heat-Shrinkable Three-Core XLPE Cable Indoor Termination Kit | 300–400 |
WRSY-10 Series – 10kV Heat-Shrinkable Outdoor Termination Kits for XLPE Cables
| Model | Description | Applicable Cable Cross-Section (mm²) |
|---|---|---|
| WRSY-10/1×0 | 10kV Heat-Shrinkable Single-Core XLPE Cable Outdoor Termination Kit | 10–16 |
| WRSY-10/1×1 | 10kV Heat-Shrinkable Single-Core XLPE Cable Outdoor Termination Kit | 25–50 |
| WRSY-10/1×2 | 10kV Heat-Shrinkable Single-Core XLPE Cable Outdoor Termination Kit | 70–120 |
| WRSY-10/1×3 | 10kV Heat-Shrinkable Single-Core XLPE Cable Outdoor Termination Kit | 150–240 |
| WRSY-10/1×4 | 10kV Heat-Shrinkable Single-Core XLPE Cable Outdoor Termination Kit | 300–400 |
| WRSY-10/1×5 | 10kV Heat-Shrinkable Single-Core XLPE Cable Outdoor Termination Kit | 500–630 |
| WRSY-10/3×0 | 10kV Heat-Shrinkable Three-Core XLPE Cable Outdoor Termination Kit | 10–16 |
| WRSY-10/3×1 | 10kV Heat-Shrinkable Three-Core XLPE Cable Outdoor Termination Kit | 25–50 |
| WRSY-10/3×2 | 10kV Heat-Shrinkable Three-Core XLPE Cable Outdoor Termination Kit | 70–120 |
| WRSY-10/3×3 | 10kV Heat-Shrinkable Three-Core XLPE Cable Outdoor Termination Kit | 150–240 |
| WRSY-10/3×4 | 10kV Heat-Shrinkable Three-Core XLPE Cable Outdoor Termination Kit | 300–400 |
Notes:
XLPE: Cross-Linked Polyethylene
NRSY-10: Indoor terminations (typically used in switchgear, indoor substations)
WRSY-10: Outdoor terminations (equipped with extended skirts for improved pollution and weather resistance)
All kits are designed for 10kV rated power cables
Installation requires proper cable preparation, stress control, and uniform heating for full shrinkage
