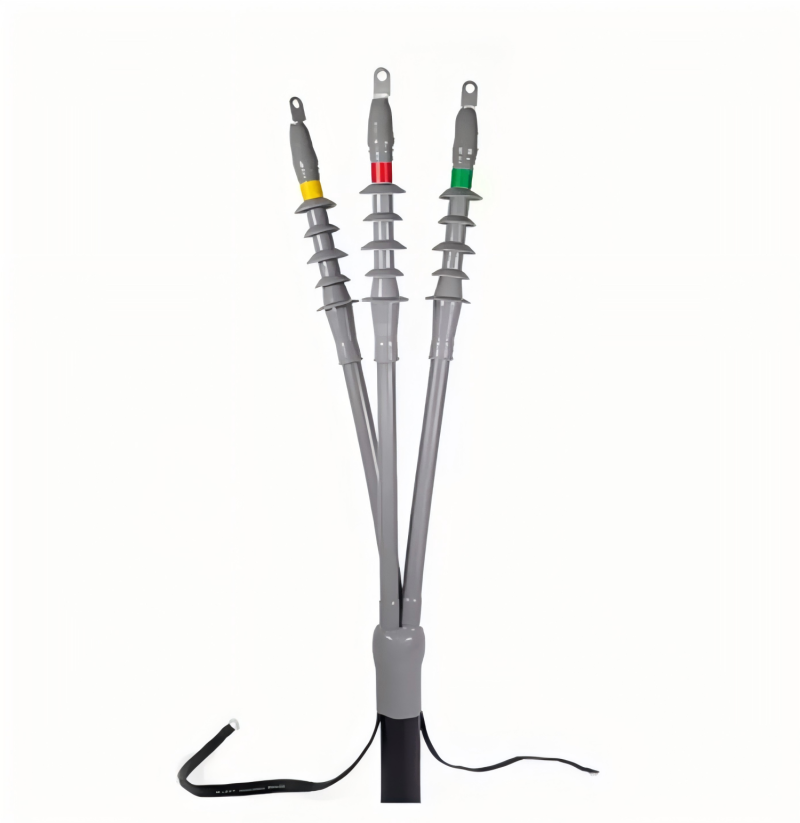

LS-15 15kV Cold Shrinkable Termination Kit
NLS-15 / WLS-15
15kV Silicone Rubber Cold Shrink Termination Kit for Cross-linked Cable
Application Range
This series is suitable for 6/10kV and 8.7/15kV cross-linked (XLPE) power cables.
It is widely used in outdoor/indoor terminations for power distribution networks, substations, industrial facilities, and utility cable installations.
Product Features
High-performance silicone rubber
Made from liquid silicone rubber with excellent tear resistance, anti-tracking properties, corrosion resistance, and stable electrical insulation performance.
Integrated stress control & insulation
The integrated structure eliminates interlayer air gaps, optimizes electric field distribution, and reduces installation procedures.
High elasticity for stable operation
Silicone rubber’s strong elasticity compensates for cable breathing during thermal cycles, preventing installation defects.
Clear phase identification
Red, yellow, and green sealing tubes provide intuitive and accurate phase separation.
Safe and flame-free installation
No open flame or heat source required. Simple, safe, and reliable installation suitable for various on-site conditions.
- Zhizheng
- HuBei
- Information
Product Performance Index
| Test Item | Standard Requirement | Test Result | Evaluation |
|---|---|---|---|
| 1 min Power Frequency Voltage Test | 45 kV, 1 min, no flashover, no breakdown | 45 kV, 1 min, no flashover or breakdown in any phase of the combined sample | Pass |
| Partial Discharge Test | Partial discharge ≤ 20 pC at 13 kV | Discharge at 13 kV: 2.0 pC, 1.8 pC, 1.9 pC per phase of the combined sample | Pass |
| Load Cycle Test | Conductor heated to 90°C–95°C; each cycle: 8 h (5 h heating + 3 h cooling); total 3 cycles | Three load cycles completed as per standard requirements | Pass |
| Partial Discharge Test (after Load Cycle) | Partial discharge ≤ 20 pC at 13 kV | Discharge at 13 kV: 2.0 pC, 1.9 pC, 2.0 pC per phase of the combined sample | Pass |
| Impulse Voltage Test | 105 kV, positive and negative polarity, 10 shots each, no flashover or breakdown | 105 kV, 10 shots each for positive and negative polarity, no flashover or breakdown in any phase of the combined sample | Pass |
| 15 min DC Voltage Test (Negative Polarity) | -52 kV, 15 min, no flashover or breakdown | -52 kV, 15 min, no flashover or breakdown in any phase of the combined sample | Pass |
| 4 h Power Frequency Voltage Test | 35 kV, 4 h, no flashover or breakdown | 35 kV, 4 h, no flashover or breakdown in any phase of the combined sample | Pass |
| Visual Inspection (Appearance Test) | No cracks, no deformation | No cracks or deformation observed | Pass |
Note: The above test data were obtained from the Electrical Equipment Quality Inspection and Testing Center of Power Industry.
