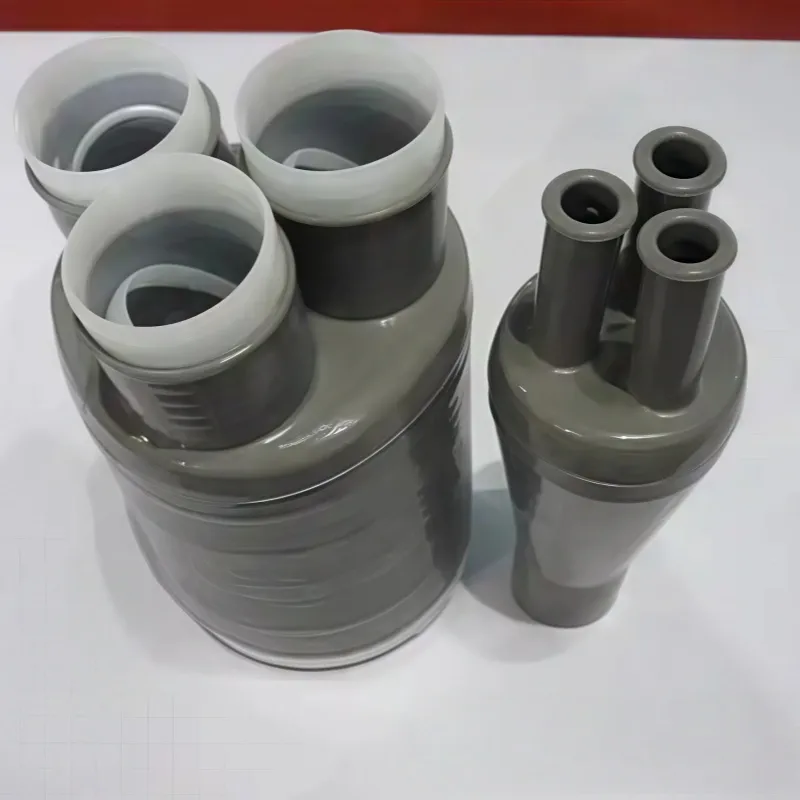

LS-1 1kV Cold Shrinkable Terminal Kit
TLS-1 / JLS-1 1 kV Low-voltage Silicone Rubber Cold Shrinkable Power Cable Accessories
Product Application:
The TLS-1 / JLS-1 Series is designed for 0.6/1 kV XLPE insulated low-voltage power cables, providing reliable electrical insulation, sealing and mechanical protection. It is suitable for terminations and joints in low-voltage distribution networks, industrial plants and general power supply systems where safe, convenient and maintenance-free installation is required.
Product Features:
• Made of liquid silicone rubber with excellent tear resistance, tracking resistance, corrosion resistance and electrical properties
• Integrated stress control and insulation design effectively avoids interlayer air gaps and reduces installation steps
• High elasticity of silicone rubber helps eliminate defects caused by the breathing effect of cables
• Equipped with constant force springs, eliminating the need for welding of the earthing and shielding connection

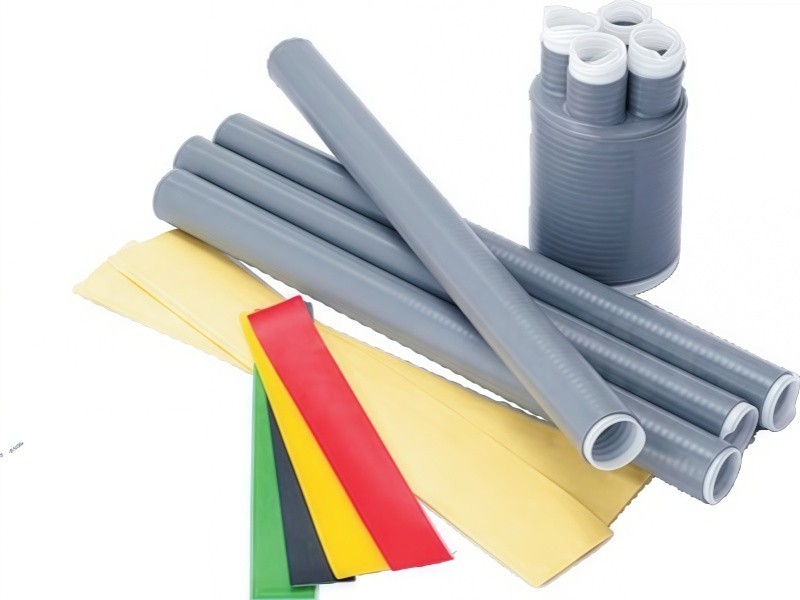

• Red, yellow and green sealing tubes provide clear phase identification and easy phase separation
• Cold-shrink design, no open flame required, ensuring easy installation, safety and long-term reliability
- Zhizheng
- HuBei
- Information
TLS-1/JLS-1 1kv Low-voltage silicon rubber cold shrinkable cross-linked power cable accessaries
Product application
TLS-1 Series products is suitable for terminal protection of 0.6/1 kV XLPE cable; JLS-1 Series products is suitable for intermediate connection of 0.6/1 kV XLPE cable.
Product Performance Index
| Test Item | Standard Requirement | Test Result | Evaluation |
|---|---|---|---|
| 1 min Power Frequency Voltage Test | 45 kV, 1 min, no flashover, no breakdown | 45 kV, 1 min, no flashover or breakdown in any phase of the combined sample | Pass |
| Partial Discharge Test | Partial discharge ≤ 20 pC at 13 kV | Discharge at 13 kV: 2.0 pC, 1.8 pC, 1.9 pC per phase of the combined sample | Pass |
| Load Cycle Test | Conductor heated to 90°C–95°C; each cycle: 8 h (5 h heating + 3 h cooling); total 3 cycles | Three load cycles completed as per standard requirements | Pass |
| Partial Discharge Test (after Load Cycle) | Partial discharge ≤ 20 pC at 13 kV | Discharge at 13 kV: 2.0 pC, 1.9 pC, 2.0 pC per phase of the combined sample | Pass |
| Impulse Voltage Test | 105 kV, positive and negative polarity, 10 shots each, no flashover or breakdown | 105 kV, 10 shots each for positive and negative polarity, no flashover or breakdown in any phase of the combined sample | Pass |
| 15 min DC Voltage Test (Negative Polarity) | -52 kV, 15 min, no flashover or breakdown | -52 kV, 15 min, no flashover or breakdown in any phase of the combined sample | Pass |
| 4 h Power Frequency Voltage Test | 35 kV, 4 h, no flashover or breakdown | 35 kV, 4 h, no flashover or breakdown in any phase of the combined sample | Pass |
| Visual Inspection (Appearance Test) | No cracks, no deformation | No cracks or deformation observed | Pass |
Note: The above test data were obtained from the Electrical Equipment Quality Inspection and Testing Center of Power Industry.
Notes:
All test results meet or exceed the standard requirements.
"Combined sample" refers to the assembled cable termination system tested as a unit.
All evaluations are marked as Pass.
TLS-1/JLS-1 Series Specification Sheet
| Model / Specification | Description | Applicable Cable Size (mm²) |
|---|---|---|
| TLS-1/1.0 | 1 kV Cold-Shrinkable Single-Core Cross-Linked Cable Terminal | 10–16 |
| TLS-1/1.1 | 1 kV Cold-Shrinkable Single-Core Cross-Linked Cable Terminal | 25–50 |
| TLS-1/1.2 | 1 kV Cold-Shrinkable Single-Core Cross-Linked Cable Terminal | 70–120 |
| TLS-1/1.3 | 1 kV Cold-Shrinkable Single-Core Cross-Linked Cable Terminal | 150–240 |
| TLS-1/1.4 | 1 kV Cold-Shrinkable Single-Core Cross-Linked Cable Terminal | 300–400 |
| TLS-1/2.0 | 1 kV Cold-Shrinkable Two-Core Cross-Linked Cable Terminal | 10–16 |
| TLS-1/2.1 | 1 kV Cold-Shrinkable Two-Core Cross-Linked Cable Terminal | 25–50 |
| TLS-1/2.2 | 1 kV Cold-Shrinkable Two-Core Cross-Linked Cable Terminal | 70–120 |
| TLS-1/2.3 | 1 kV Cold-Shrinkable Two-Core Cross-Linked Cable Terminal | 150–240 |
| TLS-1/2.4 | 1 kV Cold-Shrinkable Two-Core Cross-Linked Cable Terminal | 300–400 |
| TLS-1/3.0 | 1 kV Cold-Shrinkable Three-Core Cross-Linked Cable Terminal | 10–16 |
| TLS-1/3.1 | 1 kV Cold-Shrinkable Three-Core Cross-Linked Cable Terminal | 25–50 |
| TLS-1/3.2 | 1 kV Cold-Shrinkable Three-Core Cross-Linked Cable Terminal | 70–120 |
| TLS-1/3.3 | 1 kV Cold-Shrinkable Three-Core Cross-Linked Cable Terminal | 150–240 |
| TLS-1/3.4 | 1 kV Cold-Shrinkable Three-Core Cross-Linked Cable Terminal | 300–400 |
| TLS-1/4.0 | 1 kV Cold-Shrinkable Four-Core Cross-Linked Cable Terminal | 10–16 |
| TLS-1/4.1 | 1 kV Cold-Shrinkable Four-Core Cross-Linked Cable Terminal | 25–50 |
| TLS-1/4.2 | 1 kV Cold-Shrinkable Four-Core Cross-Linked Cable Terminal | 70–120 |
| TLS-1/4.3 | 1 kV Cold-Shrinkable Four-Core Cross-Linked Cable Terminal | 150–240 |
| TLS-1/4.4 | 1 kV Cold-Shrinkable Four-Core Cross-Linked Cable Terminal | 300–400 |
| TLS-1/5.0 | 1 kV Cold-Shrinkable Five-Core Cross-Linked Cable Terminal | 10–16 |
| TLS-1/5.1 | 1 kV Cold-Shrinkable Five-Core Cross-Linked Cable Terminal | 25–50 |
| TLS-1/5.2 | 1 kV Cold-Shrinkable Five-Core Cross-Linked Cable Terminal | 70–120 |
| TLS-1/5.3 | 1 kV Cold-Shrinkable Five-Core Cross-Linked Cable Terminal | 150–240 |
| TLS-1/5.4 | 1 kV Cold-Shrinkable Five-Core Cross-Linked Cable Terminal | 300–400 |
JLS-1 Series Specification Sheet (Cold-Shrinkable Cable Joints / Splices)
| Model / Specification | Description | Applicable Cable Size (mm²) |
|---|---|---|
| JLS-1/1.1 | 1 kV Cold-Shrinkable Single-Core Cross-Linked Cable Joint (Splice) | 25–50 |
| JLS-1/1.2 | 1 kV Cold-Shrinkable Single-Core Cross-Linked Cable Joint (Splice) | 70–120 |
| JLS-1/1.3 | 1 kV Cold-Shrinkable Single-Core Cross-Linked Cable Joint (Splice) | 150–240 |
| JLS-1/1.4 | 1 kV Cold-Shrinkable Single-Core Cross-Linked Cable Joint (Splice) | 300–400 |
| JLS-1/2.0 | 1 kV Cold-Shrinkable Two-Core Cross-Linked Cable Joint (Splice) | 10–16 |
| JLS-1/2.1 | 1 kV Cold-Shrinkable Two-Core Cross-Linked Cable Joint (Splice) | 25–50 |
| JLS-1/2.2 | 1 kV Cold-Shrinkable Two-Core Cross-Linked Cable Joint (Splice) | 70–120 |
| JLS-1/2.3 | 1 kV Cold-Shrinkable Two-Core Cross-Linked Cable Joint (Splice) | 150–240 |
| JLS-1/2.4 | 1 kV Cold-Shrinkable Two-Core Cross-Linked Cable Joint (Splice) | 300–400 |
| JLS-1/3.0 | 1 kV Cold-Shrinkable Three-Core Cross-Linked Cable Joint (Splice) | 10–16 |
| JLS-1/3.1 | 1 kV Cold-Shrinkable Three-Core Cross-Linked Cable Joint (Splice) | 25–50 |
| JLS-1/3.2 | 1 kV Cold-Shrinkable Three-Core Cross-Linked Cable Joint (Splice) | 70–120 |
| JLS-1/3.3 | 1 kV Cold-Shrinkable Three-Core Cross-Linked Cable Joint (Splice) | 150–240 |
| JLS-1/3.4 | 1 kV Cold-Shrinkable Three-Core Cross-Linked Cable Joint (Splice) | 300–400 |
| JLS-1/4.0 | 1 kV Cold-Shrinkable Four-Core Cross-Linked Cable Joint (Splice) | 10–16 |
| JLS-1/4.1 | 1 kV Cold-Shrinkable Four-Core Cross-Linked Cable Joint (Splice) | 25–50 |
| JLS-1/4.2 | 1 kV Cold-Shrinkable Four-Core Cross-Linked Cable Joint (Splice) | 70–120 |
| JLS-1/4.3 | 1 kV Cold-Shrinkable Four-Core Cross-Linked Cable Joint (Splice) | 150–240 |
| JLS-1/4.4 | 1 kV Cold-Shrinkable Four-Core Cross-Linked Cable Joint (Splice) | 300–400 |
| JLS-1/5.0 | 1 kV Cold-Shrinkable Five-Core Cross-Linked Cable Joint (Splice) | 10–16 |
| JLS-1/5.1 | 1 kV Cold-Shrinkable Five-Core Cross-Linked Cable Joint (Splice) | 25–50 |
| JLS-1/5.2 | 1 kV Cold-Shrinkable Five-Core Cross-Linked Cable Joint (Splice) | 70–120 |
| JLS-1/5.3 | 1 kV Cold-Shrinkable Five-Core Cross-Linked Cable Joint (Splice) | 150–240 |
| JLS-1/5.4 | 1 kV Cold-Shrinkable Five-Core Cross-Linked Cable Joint (Splice) | 300–400 |
