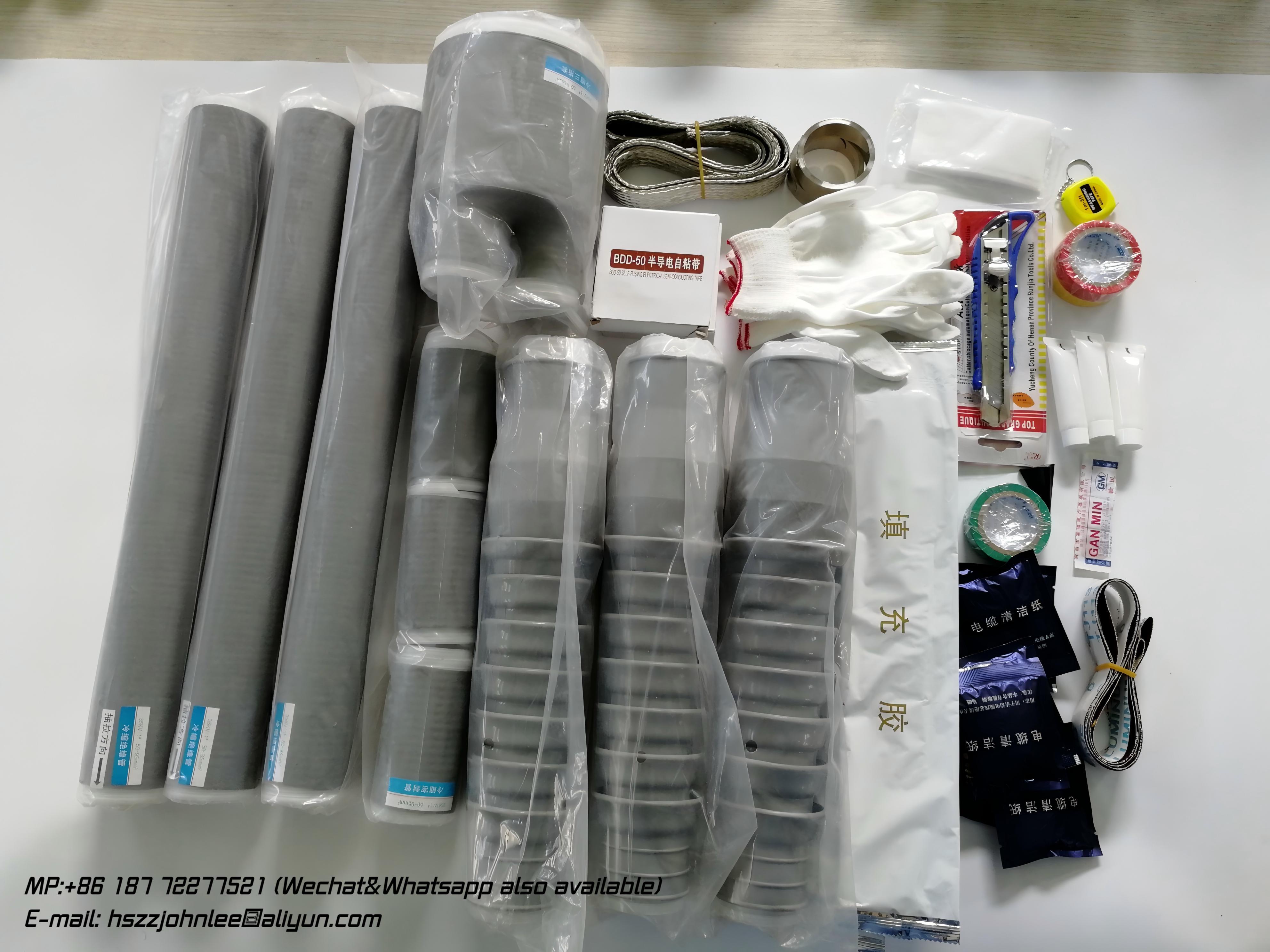

LS-35 35kV Cold Shrinkable Terminal Kit
Product Application:
The NLS-35 / WLS-35 Series is designed for 35 kV cross-linked (XLPE) power cable termination, providing reliable insulation, sealing and mechanical protection. It is suitable for indoor and outdoor terminations in distribution networks, substations and industrial power systems, especially where convenient installation and long-term performance are required.
Product Features:
• Manufactured from liquid silicone rubber with excellent tear resistance, tracking resistance, corrosion resistance and electrical properties
• Integrated stress control and insulation design effectively avoids interlayer air gaps and reduces installation steps
• High elasticity of silicone rubber helps eliminate defects caused by the breathing effect of cables
• Equipped with constant force springs, eliminating the need for welding of the earthing and shielding connection

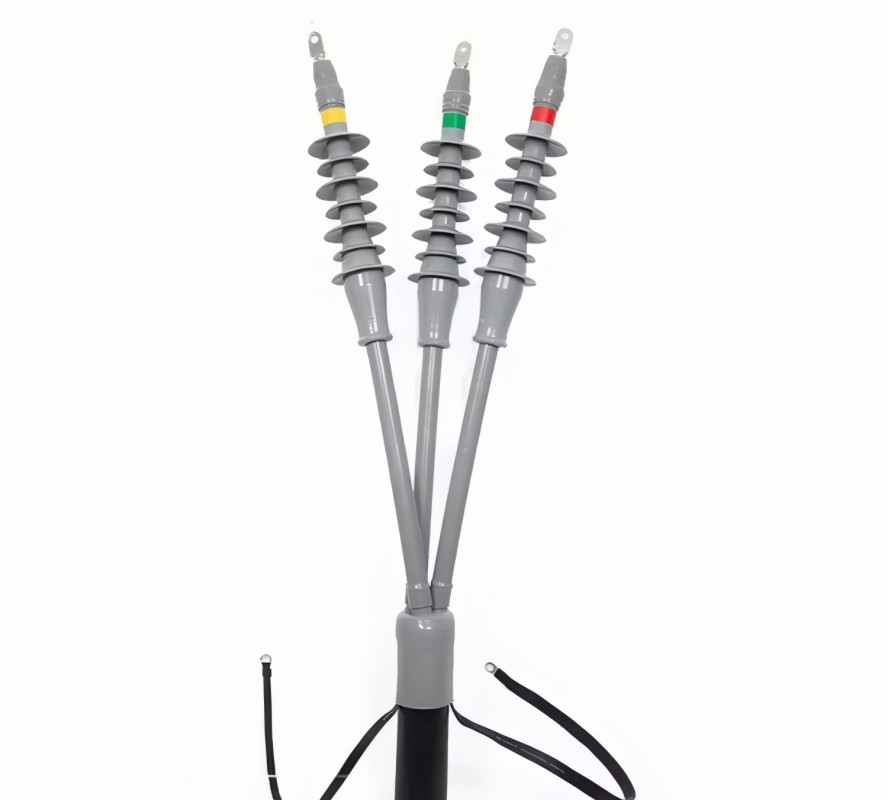

• Red, yellow and green sealing tubes provide clear phase identification and easy phase separation
• Cold-shrink technology, no need for open flame heating, ensuring easy installation, safety and reliability
- Zhizheng
- HuBei
- Information
Product Performance Test Results
| Test Item | Standard Requirement | Test Result | Evaluation |
|---|---|---|---|
| 1 min Power Frequency Voltage Test | 45 kV, 1 min, no flashover, no breakdown | 45 kV, 1 min – All phases of the combined sample showed no flashover or breakdown | Pass |
| Partial Discharge Test | Discharge ≤ 20 pC at 13 kV | 13 kV – Discharge of combined sample: 2.0 pC, 1.8 pC, 1.9 pC (per phase) | Pass |
| Load Cycle Test | Conductor heated to 90°C–95°C for 5 h, cooled for 3 h (8 h per cycle), total of 3 cycles | Completed three load cycles as per standard requirements | Pass |
| Partial Discharge Test (After Load Cycle Test) | Discharge ≤ 20 pC at 13 kV | 13 kV – Discharge of combined sample: ≤2.0 pC, 1.9 pC, 2.0 pC (per phase) | Pass |
| Impulse Voltage Test | 105 kV, positive and negative polarity, 10 shots each, no flashover, no breakdown | 105 kV – All phases of the combined sample withstood 10 shots per polarity without flashover or breakdown | Pass |
| 15 min DC Voltage Test (Negative Polarity) | -52 kV, 15 min, no flashover, no breakdown | -52 kV, 15 min – All phases of the combined sample showed no flashover or breakdown | Pass |
| 4 h Power Frequency Voltage Test | 35 kV, 4 h, no flashover, no breakdown | 35 kV, 4 h – All phases of the combined sample showed no flashover or breakdown | Pass |
| Appearance Inspection | No crack, no deformation | No cracks or deformation observed | Pass |
Note: All test data were conducted by the Electrical Equipment Quality Inspection and Testing Center of the Power Industry.
NLS-35 & WLS-35 Series Specification Sheet
| Model/Specification | Description | Applicable Cable Cross-Section (mm²) |
|---|---|---|
| NLS-35/1.1 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Single-Core XLPE Cable Indoor Termination | 25–50 |
| NLS-35/1.2 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Single-Core XLPE Cable Indoor Termination | 70–120 |
| NLS-35/1.3 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Single-Core XLPE Cable Indoor Termination | 150–240 |
| NLS-35/1.4 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Single-Core XLPE Cable Indoor Termination | 300–400 |
| NLS-35/3.1 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Three-Core XLPE Cable Indoor Termination | 25–50 |
| NLS-35/3.2 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Three-Core XLPE Cable Indoor Termination | 70–120 |
| NLS-35/3.3 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Three-Core XLPE Cable Indoor Termination | 150–240 |
| NLS-35/3.4 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Three-Core XLPE Cable Indoor Termination | 300–400 |
| WLS-35/1.1 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Single-Core XLPE Cable Outdoor Termination | 25–50 |
| WLS-35/1.2 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Single-Core XLPE Cable Outdoor Termination | 70–120 |
| WLS-35/1.3 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Single-Core XLPE Cable Outdoor Termination | 150–240 |
| WLS-35/1.4 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Single-Core XLPE Cable Outdoor Termination | 300–400 |
| WLS-35/3.1 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Three-Core XLPE Cable Outdoor Termination | 25–50 |
| WLS-35/3.2 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Three-Core XLPE Cable Outdoor Termination | 70–120 |
| WLS-35/3.3 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Three-Core XLPE Cable Outdoor Termination | 150–240 |
| WLS-35/3.4 | 35 kV High Voltage Silicone Rubber Full Cold-Shrinkable Three-Core XLPE Cable Outdoor Termination | 300–400 |
